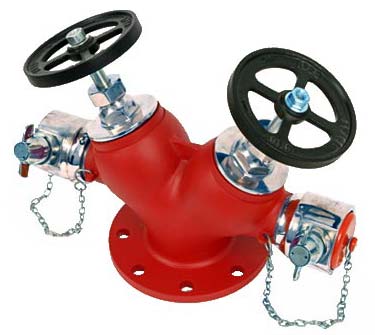

Specifications for SS 63mm Double Hydrant As Per IS: 5290
| Design Parameters | |
|---|---|
| Design Standard (General Reference) | IS 5290 Type B |
| Size | 63mm (2 1/2") |
| Inlet | Flanged 100mm |
| Outlet | 63mm Female Inst. Adaptor |
| Flange OD | 220mm |
| Flange PCD | 190mm |
| Flange Thickness | 12mm |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Stainless Steel |
| Rubber Washer/Ring | Natural Rubber |
| Spring | Stainless Steel |
| Chain | GI |
| MOC Wheel | Cast Iron |
| Blank Cap | Male Blank Cap - PVC |
| Spindle | Stainless Steel |
| Inspection Parameters | |
| Seat Pressure | 14kg/cm2 |
| Test Pressure | 21 Kg/Cm2 |
| Service Pressure | 7 kg/cm2 pressure |
| Finish | |
| Body | Painted Red, Powder Coated Red |
| Other Parts | Buff Polished |
| Wheel | Painted Black |
| General | |
| Brand | DEVRAJ/SAFEWORLD |
| ISI Marked? | Yes |
| Guarantee (From Manufacturing Defect) | 1 year |
