Water Monitors

Aluminium Hard Anodized aqua foam nozzle (size:63mm)

Aluminium 75mm (3") Aqua Foam Nozzle non-aspirating type and suitable for 2580 LPM Monitors with manual operation alongwith PVC Braided PICK-UP TUBE WITH STAINLESS
STEEL DIP TUBE suitable for manual operation.

MS 63mm Stand Post Type Water Monitor

Ball Bearing Swivel Joints with locking arrangement, Bar Type Handle, Permitting of 360 Degrees Horizontal, +80 to -45 Degrees vertical traverse, drain valve, with nozzle having female threaded inlet, suitable for a discharge of 1750 LPM at 7 kg/cm2 Pressure, 53 mter horizontal throw at 30 Degree

Available Options:
- Without Nozzle
- Aluminium Jet Nozzle
- Aqua Foam Nozzle made from Aluminum

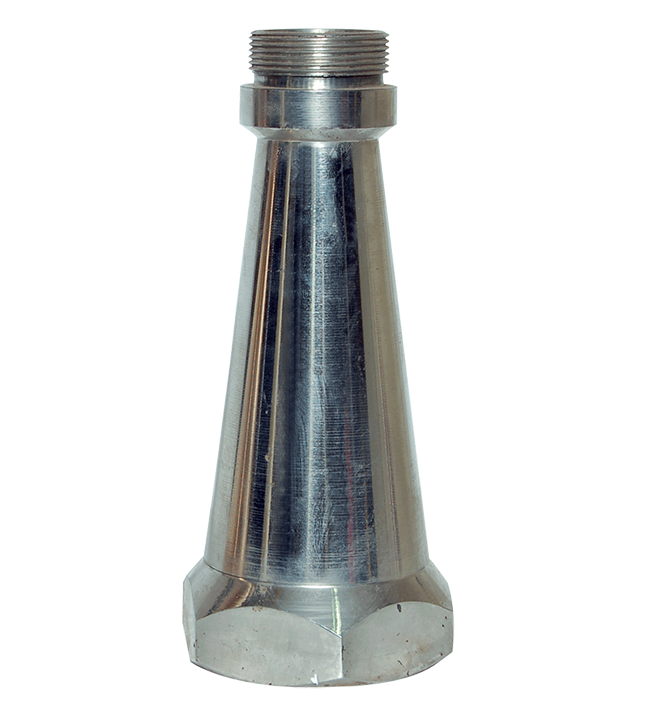

Aluminum 75mm SOLID JET NOZZLE FOR MONITOR

GM 75mm SOLID JET NOZZLE FOR MONITOR

GM 63mm Water Monitor (Fixed - Dual Flow type) with Jet & Spray type Nozzle

Stand Post type WATER FOAM MONITOR made of stainless Steel having 100mm Barrel Size & 100mm ASA150# flanged inlet, with a flow capacity of 3500lpm@7kg/cm² as per IS:- 8442 type “I” with GUN METAL Swivel Joints and self-induc ting non-aspirating type and AL. ALLOY AQUA FOAM Nozzle suitable for manual operation alongwith PVC PICK-UP TUBE WITH STAINLESS STEEL DIP TUBE suitable for manual operation.

Stand Post type UL LISTED WATER CUM FOAM MONITOR having STAINLESS STEEL (SS-316) Monitor Barrel and the size of Barrel is: 75mm (3”) and 100mm flanged inlet, with a capacity of discharge flow is 500 US GPM @7kg/cm² with STAINLESS STEEL (SS-316) Jet –Spray & Aqua fog Non-aspirating Self inducting type Nozzle and Gear operated STAINLESS STEEL (SS-316) swivel Joints with WORM SHAFT AND WORM WHEEL (for individual operations) along with PVC PICK-UP TUBE WITH STAINLESS STEEL DIP TUBE suitable for manual operation with self-induction.
