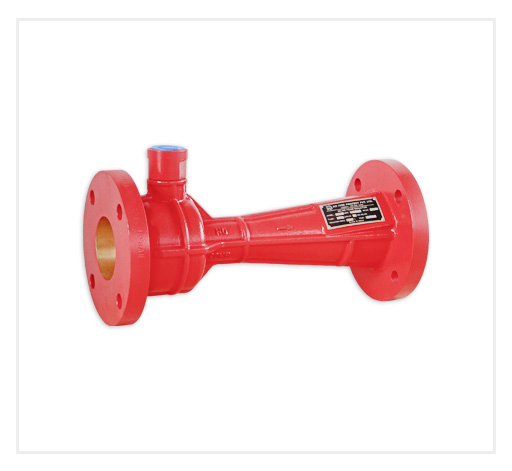

Specifications for GM 63mm Inline Inductor (Flange type)
| Design Parameters | |
|---|---|
| Flange OD | 185mm |
| Flange PCD | 140mm |
| Hole Diameter / Internal Diameter | 19mm |
| Flange ID (Bore Dia) | 75mm (3") |
| Foam Inlet | 25mm (1") Female BSP Threaded |
| Ventury Size | 19mm |
| MoC (Material of Construction) | |
| MOC - Body/All Parts | Body - Gunmetal |
| Ventury | Gun Metal |
| MOC - Foam Connection Adaptor | Copper Alloy |
| Functional Parameters | |
| Flow (in LPM) | 225-250 LPM |
| Inspection Parameters | |
| Test Pressure | 14 kg/cm2 |
| Working Pressure | 7 Kg/Cm2 |
| Finish | |
| External Colour | Red |
| General | |
| Brand | DEVRAJ/SAFEWORLD |
| Guarantee (From Manufacturing Defect) | 1 Year |
